3 trends in mechanical process engineering

Process intensification

Forward-looking technologies in process technology rely on process intensification and thus efficient use of the time, energy and raw materials used in a process. When mixing and dispersing with new optimised processes, the differences with regard to required energy, volume-specific capacity or newly created phase boundaries compared to conventional technologies such as agitators, injectors or High Speed Dissolvers are significant.

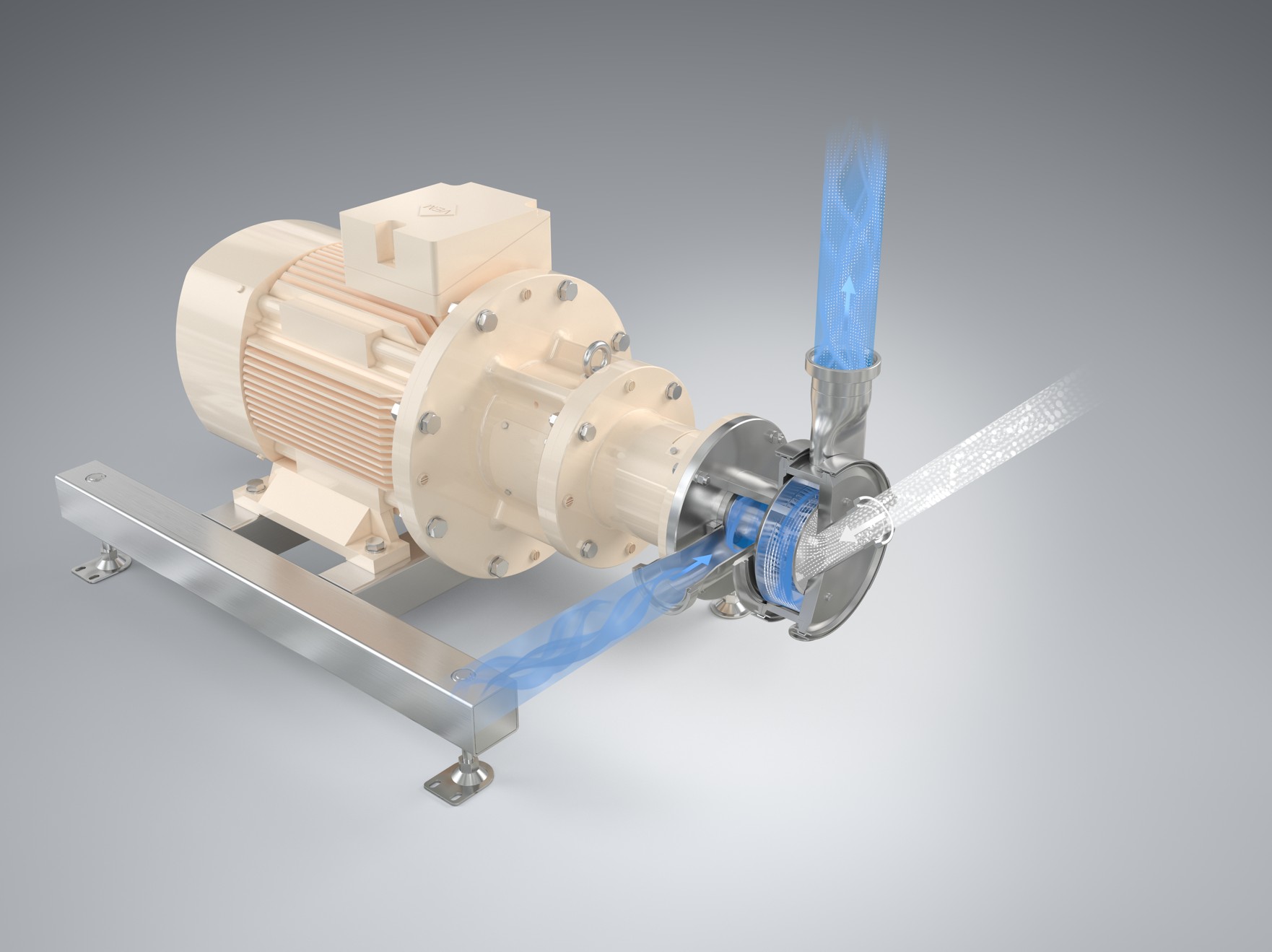

With the YSTRAL Conti-TDS disperser from the mixing and dispersion technology specialist ystral, which is operated outside of the vessel, the processes of wetting and dispersing for example are concentrated in one dispersing zone with an effective volume of only approx. a quarter of a litre. Compared to a High Speed Dissolver operated inside the vessel, the disperser generates approx. 30,000 times higher volume-specific power. This concentrated power is crucial for successful dispersion. Using a rotor-stator system, the Conti-TDS also builds up shear forces at the same time that are a thousand times higher. The dwell time is extremely short, so that only a fraction of the energy is needed compared to the High Speed Dissolver.

Flexible modularisation in process technology – up to machine level

In light of variable requirements, variable batch sizes and ever more frequent product changes, a flexible machine and plant design is becoming increasingly important. Manufacturers must be able to produce a large number of product versions and newly developed products order- and user-oriented. Whilst with a rigid design, machines and plants must be replaced completely in case of a process change, with modular systems, selective adaptations are sufficient.

With systems from ystral, physical modules, but also control modules are flexibly combined in line with the modular principle, and can be adapted and extended in accordance with the requirements. On machine level, ystral uses conversion sets consisting of few parts, to adapt a universal basic machine to new requirements.

Twin Tank instead of Single Tank

A twin tank plant is suited to continuous production of a product: While production takes place in one vessel, the finished product is pumped out in the second vessel. As soon as this vessel is empty, the switch occurs. But the twin tank principle is also used at ystral for increasing the plant capacity, as the YSTRAL Conti-TDS disperser is only used for powder induction and dispersing, but it is not required for other process steps such as rinsing, filling and pumping out. Due to the alternating use of the Conti-TDS on two identical process vessels, the downtimes of the machine can be minimised. With the twin tank concept, ystral achieves an increased system efficiency by up to 100% with minimum additional space requirement – only a second identical process vessel, which is connected to the disperser by a pipe, is required with the Jetstream Mixer.

Trends do not always just point in one direction in process technology

The changes in process technology are varied, and do not always just point in one direction: While for example, in the pharmaceutical industry, the development is towards a reduction in batch sizes, other industries are changing rather in direction of larger output quantities and continuous inline processes. Independent of this, in future those solutions in terms of process technology will prevail which enable decreased production costs, shorter production times, improved plant efficiency, lower energy consumption and more efficient use of raw materials.

Further information

A whitepaper providing analyses of the 13 most important trends in mechanical process technology can be downloaded from www.ystral.com/en/whitepaper-trends-mega-trends-in-process-technology/.
